Model

Brand

GIGABYTE

Series

G1 Gaming

Model

GA-Z97X-Gaming 7

Supported CPU

CPU Socket Type

LGA 1150

CPU Type

Core i7 / i5 / i3 / Pentium / Celeron (LGA1150)

Chipsets

Chipset

Intel Z97

Onboard Video

Onboard Video Chipset

Integrated Graphics Processor - Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60Hz 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@24Hz or 2560x1600@60Hz * Support for HDMI 1.4a version. Support for up to 3 displays at the same time Maximum shared memory of 512MB

Memory

Number of Memory Slots

4×240pin

Memory Standard

DDR3 3200(O.C.)/ 3100(O.C.)/ 3000(O.C.)/ 2933(O.C.)/ 2800(O.C.)/ 2666(O.C.)/ 2600(O.C.)/ 2500(O.C.)/ 2400(O.C.)/ 2200(O.C.)/ 2133(O.C.)/ 2000(O.C.)/ 1866(O.C.)/ 1800(O.C.)/ 1600/ 1333

Maximum Memory Supported

32GB

Channel Supported

Dual Channel

Expansion Slots

PCI Express 3.0 x16

1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x16 slot, running at x8 (PCIEX8) * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot will operate at up to x8 mode. 1 x PCI Express x16 slot, running at x4 (PCIEX4) * The PCIEX4 slot shares bandwidth with the PCIEX8 and PCIEX16 slots. When the PCIEX4 slot is populated, the PCIEX16 slot will operate at up to x8 mode and the PCIEX8 will operate at up to x4 mode. * When installing a x8 or above card in the PCIEX4 slot, make sure to set PCIE Slot Configuration (CPU) in BIOS Setup to x4. (Refer to Chapter 2, "BIOS Setup," "Peripherals," for more information.) (The PCIEX16, PCIEX8 and PCIEX4 slots conform to PCI Express 3.0 standard.)

PCI Express x1

3 x PCI Express x1 slots (The PCI Express x1 slots conform to PCI Express 2.0 standard.)

PCI Slots

1 x PCI Slot

Storage Devices

SATA 6Gb/s

6 x SATA 6Gb/s connectors (SATA3 0~5), by Chipset (M.2, SATA Express, and SATA3 4/5 connectors can only be used one at a time. The SATA3 4/5 connectors will become unavailable when an M.2 SSD is installed.) 2 x SATA 6Gb/s connectors (GSATA3 6~7), by Marvell 88SE9172 chip

SATA Express

1 x SATA Express connector

M.2

1 x M.2 PCIe connector (Socket 3, M key, type 2242/2260/2280 SATA & PCIe SSD support)

SATA RAID

0/1/5/10

Onboard Audio

Audio Chipset

Realtek ALC1150

Audio Channels

7.1 Channels

Onboard LAN

LAN Chipset

Qualcomm Atheros Killer E2201

Max LAN Speed

10/100/1000Mbps

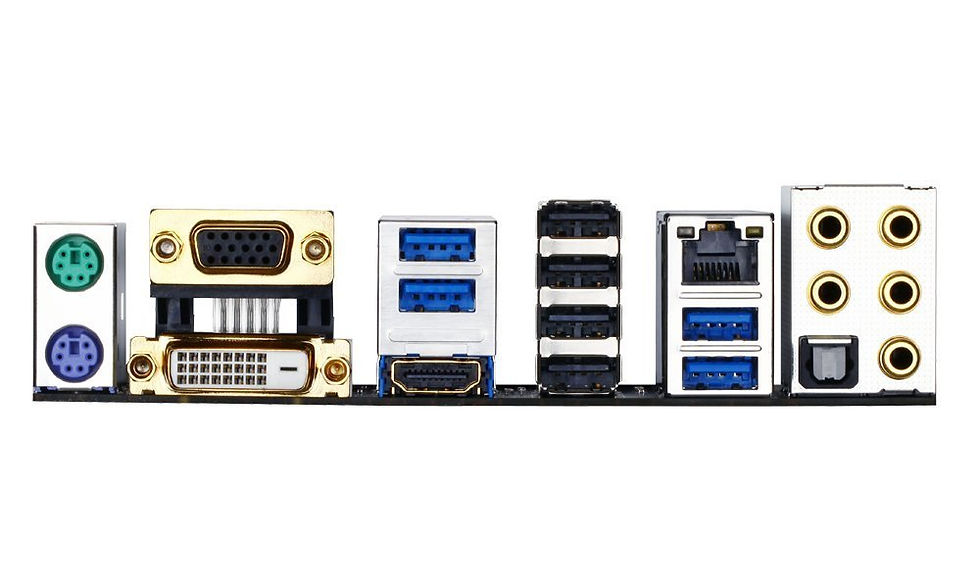

Rear Panel Ports

PS/2

1 x PS/2 mouse port 1 x PS/2 Keyboard port

Video Ports

1 x D-Sub port 1 x DVI-D port

HDMI

1 x HDMI

RJ45

1 x RJ45

USB 3.0

4 x USB 3.0

USB 1.1/2.0

4 x USB 2.0

S/PDIF Out

1 x Optical

Audio Ports

5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)

Internal I/O Connectors

Onboard USB

1 x USB 3.0/2.0 header 2 x USB 2.0/1.1 headers

Other Connectors

1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x PCIe power connector 1 x CPU fan header 1 x water cooling fan header (CPU_OPT) 4 x system fan headers 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x serial port header 1 x Clear CMOS jumper 1 x Trusted Platform Module (TPM) header 1 x power button 1 x reset button 1 x Clear CMOS button 2 x BIOS switches Voltage measurement points

Physical Spec

Form Factor

ATX

Dimensions (W x L)

12.0" x 9.6"

Power Pin

24 Pin

Features

Features

Multi-Graphics Technology - Support for 3-Way/2-Way AMD CrossFire and 2-Way NVIDIA SLI Technology I/O Controller - iTE I/O Controller Chip H/W Monitoring - System voltage detection - CPU/Chipset/System temperature detection - CPU/CPU OPT/System fan speed detection - CPU/System overheating warning - CPU/CPU OPT/System fan fail warning - CPU/CPU OPT/System fan speed control * Whether the fan speed control function is supported will depend on the cooler you install. BIOS - 2 x 128 Mbit flash - Use of licensed AMI UEFI BIOS - Support for DualBIOS - PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features - Support for APP Center * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications. @BIOS EasyTune EZ Setup Fast Boot Game Controller ON/OFF Charge Smart TimeLock Smart Recovery 2 System Information Viewer USB Blocker - Support for Q-Flash - Support for Smart Switch - Support for Xpress Install Bundle Software - Norton Internet Security (OEM version) - Intel Rapid Start Technology - Intel Smart Connect Technology - Intel Smart Response Technology Operating System - Support for Windows 10/8.1/8/7
