Model

Brand

GIGABYTE

Model

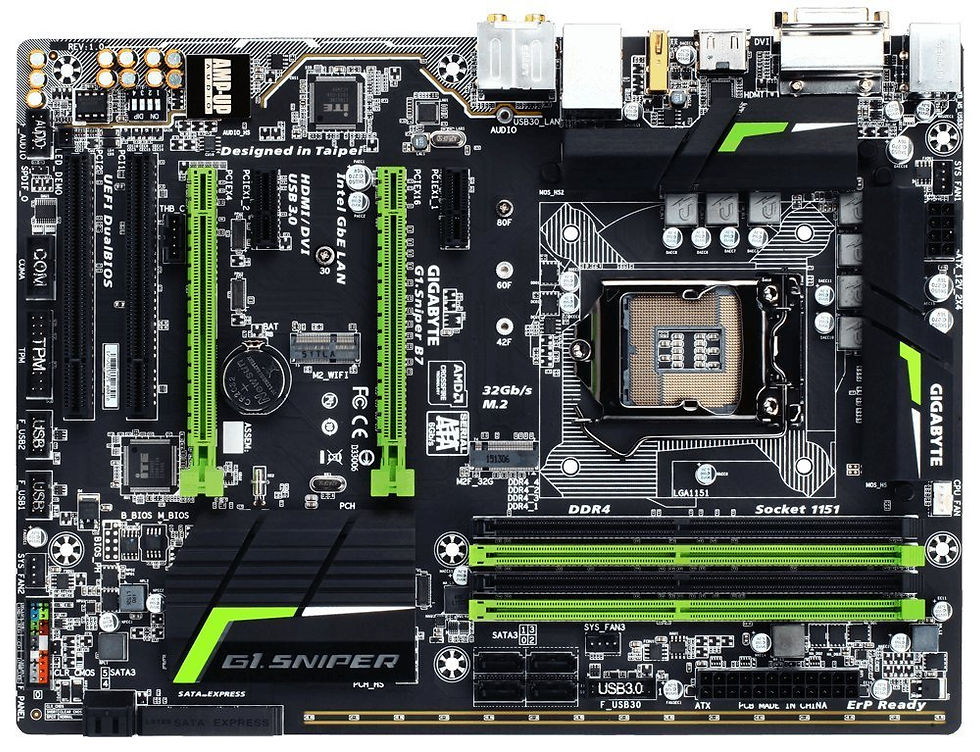

G1.Sniper B7 (rev. 1.0)

Supported CPU

CPU Socket Type

LGA 1151

CPU Type

Core i7 / i5 / i3 / Pentium / Celeron (LGA1151)

Chipsets

Chipset

Intel B150

Onboard Video

Onboard Video Chipset

Integrated Graphics Processor - Intel HD Graphics support: 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz * Support for HDMI 1.4 version. Maximum shared memory of 512MB

Memory

Number of Memory Slots

4×288pin

Memory Standard

DDR4 2133

Maximum Memory Supported

64GB

Channel Supported

Dual Channel

Expansion Slots

PCI Express 3.0 x16

1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x16 slot, running at x4 (PCIEX4) (All of the PCI Express slots conform to PCI Express 3.0 standard.)

PCI Express x1

2 x PCI Express x1 slots (All of the PCI Express slots conform to PCI Express 3.0 standard.)

PCI Slots

2 x PCI slots * Refer to "1-8 Internal Connectors," for the supported configurations with the M.2, SATA Express, SATA connectors, and PCI slots.

Other Slots

1 x M.2 Socket 1 connector for the wireless communication module (M2_WIFI)

Storage Devices

SATA 6Gb/s

6 x SATA 6Gb/s connectors * Refer to "1-8 Internal Connectors," for the supported configurations with the M.2, SATA Express, SATA connectors and PCI slots.

SATA Express

1 x SATA Express connector

M.2

1 x M.2 Socket 3 connector (M2F_32G) (Socket 3, M key, type 2242/2260/2280/22110 SATA & PCIe x4/x2/x1 SSD support)

Onboard Audio

Audio Chipset

Realtek ALC1150

Audio Channels

7.1 Channels

Onboard LAN

LAN Chipset

Intel GbE LAN chip

Max LAN Speed

10/100/1000Mbps

Rear Panel Ports

PS/2

1 x PS/2 keyboard/mouse port

Video Ports

1 x DVI-D port

HDMI

1 x HDMI

RJ45

1 x RJ45

USB 3.0

4 x USB 3.0

USB 1.1/2.0

1 x USB 2.0

S/PDIF Out

1 x Optical

Audio Ports

5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)

Internal I/O Connectors

Onboard USB

1 x USB 3.0/2.0 header 2 x USB 2.0/1.1 headers

Other Connectors

1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x Trusted Platform Module (TPM) header 1 x Thunderbolt add-in card connector 1 x serial port header 1 x Clear CMOS jumper 1 x audio gain control switch

Physical Spec

Form Factor

ATX

Dimensions (W x L)

12.01" x 8.86"

Power Pin

24 Pin

Features

Features

Multi-Graphics Technology - Support for 2-Way AMD CrossFire technology I/O Controller - iTE I/O Controller Chip H/W Monitoring - System voltage detection - CPU/System temperature detection - CPU/System fan speed detection - CPU/System overheating warning - CPU/System fan fail warning - CPU/System fan speed control * Whether the fan speed control function is supported will depend on the cooler you install. BIOS - 2 x 64 Mbit flash - Use of licensed AMI UEFI BIOS - Support for DualBIOS - PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features - Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. 3D OSD @BIOS Ambient LED AutoGreen Cloud Station EasyTune Fast Boot Smart TimeLock Smart Keyboard Smart Backup System Information Viewer USB Blocker - Support for Q-Flash - Support for Smart Switch - Support for Xpress Install Bundle Software - Norton Internet Security (OEM version) - cFosSpeed Operating System - Support for Windows 10/8.1 64-bit - Support for Windows 7 32-bit/64-bit * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
